| Min. bestelaantal: | 100 |
|---|---|
| Verpakking Details: | Originele Verpakking |
| Levertijd: | 1-12 weken |
| Betalingscondities: | T/T |
| Nominale spanning (a): | 2000V | Het meten van Waaier: | 0~±3000V |
|---|---|---|---|
| Het werk principe: | magnetisch saldo | Voedingvoltage (v): | ±15 × (1±5%) V |
| Geschatte metingsoutput: | 50mA | Basisfout: | ≦ ± 0,7% |
| Lineariteitfout: | ≦0.1% | Weersta voltage: | 9kV / 50Hz / 2min |
| Markeren: | 2000VA Voltage Sensor,9kV Voltage Sensor |
||

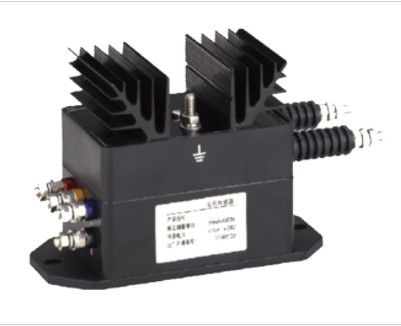

| NV100-2000V/SP7 rail voltage sensor model specifications and technical parameters | |
| Rated voltage (A) | 2000V |
| Product number | NV100-2000V/SP7 |
| Measuring range | 0～±3000V |
| working principle | Magnetic balance |
| Power supply voltage (V) | ± 15 × (1 ± 5%) V |
| Rated measurement output | 50mA |
| Basic error | ≦±0.7 % |
| Linearity error | ≦0.1% |
| Zero output error (+25 ℃ ) | ≦ ± 0.2mA |
| Response time | ≦60us |
| Withstand voltage | 9kV/50Hz/2min |
| Operating temperature | -40℃-+85℃ |
Dimensions of NV100-2000V/SP7 rail voltage sensor
