| Min. bestelaantal: | 100 |
|---|---|
| Verpakking Details: | Originele Verpakking |
| Levertijd: | 1-12 weken |
| Betalingscondities: | T/T |
| Nominale spanning (a): | 1500V | Productaantal: | NV100-1500V |
|---|---|---|---|
| Het meten van Waaier: | 0~±2250V | Het werk principe: | magnetisch saldo |
| Voedingvoltage (v): | ±15 × (1±5%) V | Geschatte metingsoutput: | 40mA |
| Basisfout: | ≦± 1% | Lineariteitfout: | ≦0.1% |
| Markeren: | 1500VA Voltage Transducers,40mA Magnetic Balance Voltage Transducers |
||

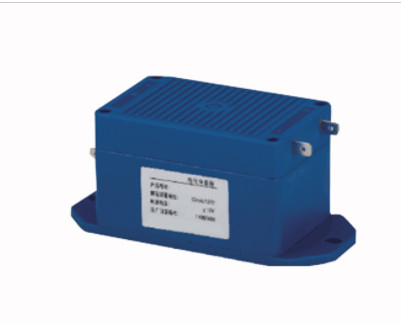

| NV100-1500V rail voltage sensor model specifications and technical parameters | |
| Rated voltage (A) | 1500V |
| Product number | NV100-1500V |
| Measuring range | 0～±2250V |
| working principle | Magnetic balance |
| Power supply voltage (V) | ± 15 × (1 ± 5%) V |
| Rated measurement output | 40mA |
| Basic error | ≦±1 % |
| Linearity error | ≦0.1% |
| Zero output error (+25 ℃ ) | ≦ ± 0.2mA |
| Response time | ≦120us |
| Withstand voltage | 6kV/50Hz/2min |
| Operating temperature | -40℃-+85℃ |
Dimensions of NV100-1500V rail voltage sensor
