| Min. bestelaantal: | 100 |
|---|---|
| Verpakking Details: | Originele Verpakking |
| Levertijd: | 1-12 weken |
| Betalingscondities: | T/T |
| Nominale spanning (a): | 1400V | Productaantal: | NCV1-2000V |
|---|---|---|---|
| Het meten van Waaier: | 0 ～ ± 2000V | Het werk principe: | Magnetische modulatie |
| Voedingvoltage (v): | ±15 × (1±5%) V | Geschatte metingsoutput: | 7V |
| Weersta voltage: | 7kV / 50Hz / 2min | Werkende Temperatuur: | -40℃-+85℃ |
| Markeren: | 1400VA Voltage Sensor,4us Response Voltage Sensor |
||

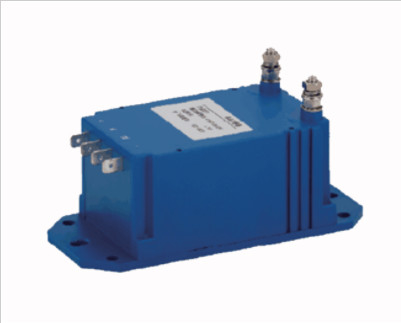

| Model specifications and technical parameters of the voltage sensor in the NCV1-2000V rail | |
| Rated voltage (A) | 1400V |
| Product number | NCV1-2000V |
| Measuring range | 0～±2000V |
| working principle | Magnetic modulation |
| Power supply voltage (V) | ± 15 × (1 ± 5%) V |
| Rated measurement output | 7V |
| Basic error | ≦±1 % |
| Linearity error | ≦0.1% |
| Zero output error (+25 ℃ ) | ≦±35mV |
| Response time | ≦4us |
| Withstand voltage | 7kV / 50Hz / 2min |
| Operating temperature | -40℃-+85℃ |
Dimensions of NCV1-2000V rail voltage sensor
